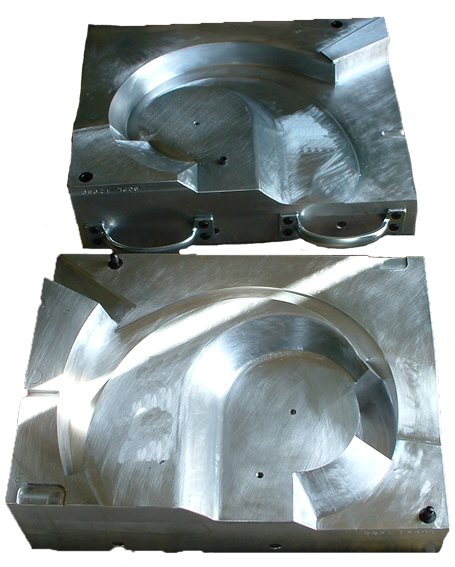

Lost wax
injection
Tooling for your lost wax injection project. Start with a model, drawing or the part you have in mind.
Discuss your project

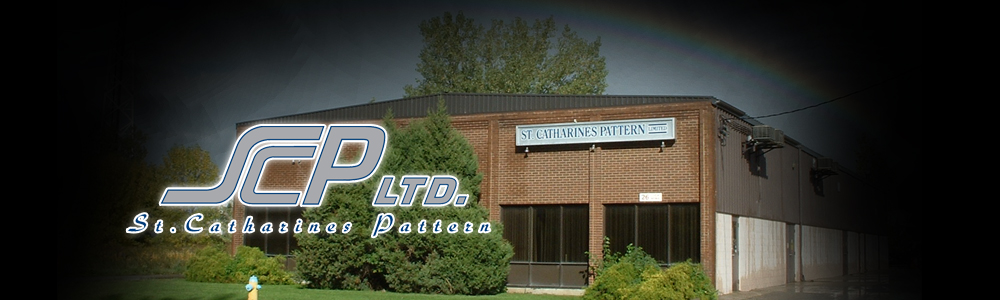

St. Catharines Pattern Limited / Niagara, Ontario
Pattern & tooling makersTooling for
wax, sand & foam.
From a drawing to something you can hold. Models, prototypes and tooling, made here in the Niagara region.
Bring us your project
Models & prototypesCAD / CAMCNC machiningFoundry tooling
01 / What we makeThree disciplines.
Three disciplines.
One practical starting point.
Lost wax

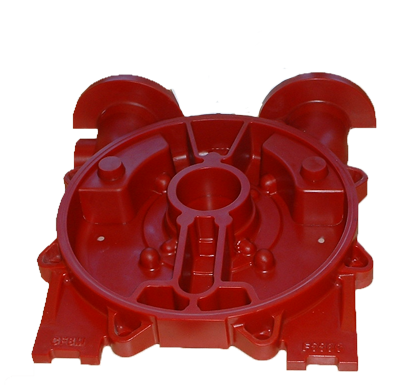

Foundry sand
tooling
Bring your drawings, sample parts or project requirements to a foundry sand tooling discussion.

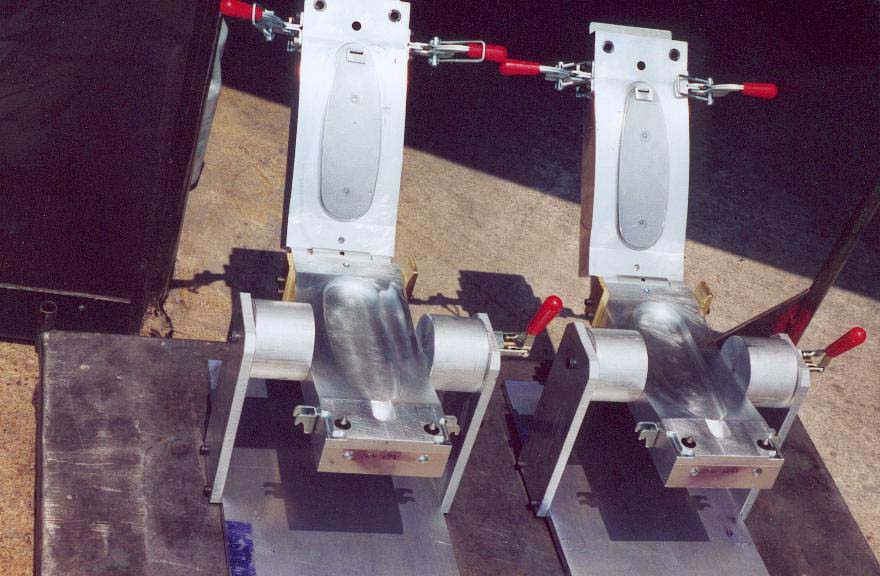

Discuss your projectPolyurethane
foam molds
Share the model or drawings behind your polyurethane foam mold project.
Discuss your project02 / Behind the work
Draw. Machine.
Inspect. Make.
CAD/CAM design, machining, inspection and a fully equipped wood shop. Explore the resources available for your project.
Tell us what you need ↗CAD / CAM
Design workstations include SURFCAM, SolidWorks and AutoCAD.
CNC equipment
CNC mills and a CNC lathe are part of the equipment lineup.
CMM inspection
CMM inspection is part of the manufacturing capability.
Wood shop
A fully equipped wood shop for model and pattern work.
03 / From your drawing
Start with what you have.
Have a drawing, CAD file or sample part? Start with a clear overview of your project.
01.
Describe the project
Outline the service you need, the quantity and your requested date. Mark anything still to be confirmed.
02.
Identify your files
Include the drawing or CAD file type and its revision so the team has a clear starting point.
03.
Prepare the conversation
Summarize what you need and any questions you would like to discuss with the team.
.dwg.dxf.igs.step.x_t
04 / Start a conversation
A clearer brief.
A better starting point.
Tell us about the part, model or tooling you have in mind. Prepare a project summary to guide the conversation.
Preview form: prepares a summary on this page only. Nothing is sent. Use sample information.
